The Reasons for Rebound in Metal Stamping Processing

Metal stamping is a cornerstone of many manufacturing processes. However, like all techniques, it has its challenges. One such challenge is the phenomenon of rebound. Let’s delve into the reasons behind this occurrence in metal stamping processing.

Rebound in metal stamping processing refers to the elastic recovery of metal after the stamping force is removed, causing the metal to spring back slightly from its intended shape.

To fully grasp the reasons behind rebound in metal stamping, it’s essential to understand the intricacies of the stamping process and the properties of metals.

Understanding Rebound in Metal Stamping

Metal stamping, a process that has revolutionized the manufacturing industry, is not without its challenges. One such challenge that often perplexes engineers and technicians alike is the phenomenon of rebound. But what exactly is rebound, and what factors influence its occurrence?

What is Rebound?

Rebound, often referred to as “springback,” is the elastic recovery of the metal after the stamping force is removed. In simpler terms, once a metal sheet is stamped and the pressure is released, the metal tends to return slightly to its original shape, deviating from the intended design. This can lead to inaccuracies in the final product, making it a significant concern in precision manufacturing. The degree of rebound is influenced by various factors, from the type of metal used to the design of the stamping die. Understanding rebound is crucial as it directly impacts the quality and accuracy of stamped parts.

Factors Influencing Rebound

1. Material Properties: Different metals have varying levels of elasticity. Metals with higher elasticity tend to experience more rebound. For instance, aluminum, known for its malleability, often exhibits more springback than harder metals like steel.
2. Die Design: The design and precision of the stamping die play a pivotal role in rebound. Dies that distribute force evenly and have smoother transitions can help mitigate the effects of rebound.
3. Stamping Force: The amount of force applied during the stamping process can influence the degree of rebound. Insufficient force might not overcome the metal’s inherent elasticity, leading to more pronounced rebound. Conversely, excessive force can lead to other issues like metal tearing.
4. Metal Thickness: Thicker metal sheets tend to resist deformation, leading to increased rebound when compared to thinner sheets.
5. Temperature: The temperature at which stamping occurs can also influence rebound. Warmer metals are generally more malleable and may exhibit different rebound characteristics than metals stamped at cooler temperatures.

Material Properties and Rebound

The properties of the metal being stamped play a pivotal role in determining the degree of rebound. From the inherent elasticity of metals to the thickness and grain structure of the metal sheet, each aspect can influence how the metal responds post-stamping.

Elasticity of Metals

Elasticity refers to a material’s ability to return to its original shape after being deformed. In the context of metals, it’s this inherent elasticity that’s responsible for rebound. When a metal is stamped, it undergoes elastic deformation (temporary change in shape) and plastic deformation (permanent change in shape). Once the stamping force is removed, the metal tries to revert from its plastic deformation, leading to rebound. Metals with higher elastic moduli, like steel, tend to have more pronounced rebound compared to metals with lower moduli, like lead.

Material Thickness and Grain Structure

1. Material Thickness: The thickness of the metal sheet can significantly influence rebound. Thicker sheets have more material resisting the stamping force, leading to a higher degree of elastic deformation and, consequently, more rebound. Conversely, thinner sheets, with less material resisting deformation, might exhibit less rebound but are also more susceptible to issues like tearing or wrinkling.
2. Grain Structure: The grain structure of a metal refers to the arrangement and size of individual grains (or crystals) within the metal. Metals with fine grain structures tend to have better formability and reduced rebound compared to those with coarse grain structures. The grain structure can be influenced by processes like annealing, which can help in controlling rebound in metal stamping.

Stamping Process and Rebound

The stamping process itself, from the design of the dies to the speed and pressure applied, plays a significant role in determining the degree of rebound. Optimizing these factors can help in achieving accurate and consistent stamped parts.

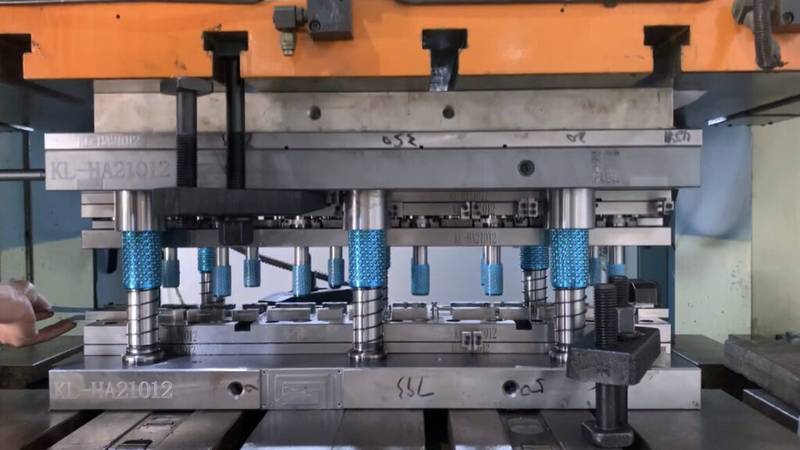

Role of Die Design

The design of the stamping die is paramount in influencing rebound. A well-designed die can distribute the stamping force evenly across the metal, reducing the chances of uneven deformation and subsequent rebound. Factors to consider include:

1. Die Material: Harder die materials can provide a more consistent stamping force, reducing variations in rebound.
2. Die Surface Finish: A smoother die surface can reduce friction during stamping, leading to more uniform deformation and less rebound.
3. Die Geometry: The shape and design of the die, including features like radii and angles, can influence how the metal deforms. Dies designed with rebound in mind might incorporate features to counteract the expected springback.

Stamping Speed and Pressure

1. Stamping Speed: The rate at which the stamping press operates can influence rebound. Faster stamping speeds might not allow the metal enough time to conform to the die, leading to increased rebound. Conversely, slower speeds might result in more controlled deformation but can reduce production efficiency.
2. Stamping Pressure: The amount of force applied during stamping is crucial. Insufficient pressure might lead to incomplete deformation and increased rebound. On the other hand, excessive pressure can cause the metal to over-deform, leading to issues like tearing or wrinkling. Finding the right balance is key to minimizing rebound while ensuring the quality of the stamped part.

Mitigating Rebound in Metal Stamping

Rebound, while a natural occurrence in metal stamping, can be a significant concern, especially in precision manufacturing. However, with the right techniques and material choices, its effects can be minimized, ensuring the production of accurate and high-quality stamped parts.

Pre-Stretching and Overbending

1. Pre-Stretching: This technique involves stretching the metal sheet before stamping. By inducing an initial deformation, pre-stretching can reduce the metal’s tendency to spring back during the actual stamping process.
2. Overbending: Anticipating the degree of rebound and adjusting the die design accordingly is known as overbending. By intentionally bending the metal slightly more than the desired final shape, manufacturers can account for the expected springback, ensuring the final product conforms to specifications.

Material Selection and Treatment

1. Material Choice: Selecting metals with lower elastic moduli or inherent malleability can reduce rebound. For instance, opting for softer metals like aluminum or certain alloys can be beneficial in applications where minimal rebound is crucial.
2. Heat Treatment: Processes like annealing can alter the grain structure of metals, making them more malleable and reducing their tendency to spring back. Post-stamping heat treatments can also help in relieving internal stresses, further reducing rebound.
3. Surface Treatments: Coatings or lubricants can reduce friction during stamping, leading to more uniform deformation and reduced rebound. Such treatments can also enhance the lifespan of stamping dies, ensuring consistent performance over time.

Conclusion

Rebound in metal stamping, often seen as a challenge, is a natural consequence of the interplay between the inherent properties of metals and the forces applied during the stamping process. From the elasticity of metals to the design of the stamping dies, various factors contribute to this phenomenon. While it might seem like a hurdle, with a deep understanding and the right techniques, its effects can be significantly minimized.

Choosing the right materials, optimizing the stamping process, and employing techniques like pre-stretching and overbending are just a few of the many ways manufacturers can counteract rebound. Moreover, advancements in material science and manufacturing technologies continue to provide new avenues to address this challenge.

In the realm of precision manufacturing, where every millimeter counts, understanding and mitigating rebound is paramount. By doing so, manufacturers can ensure the production of high-quality, accurate, and consistent stamped parts, driving efficiency and excellence in the world of metalworking.
